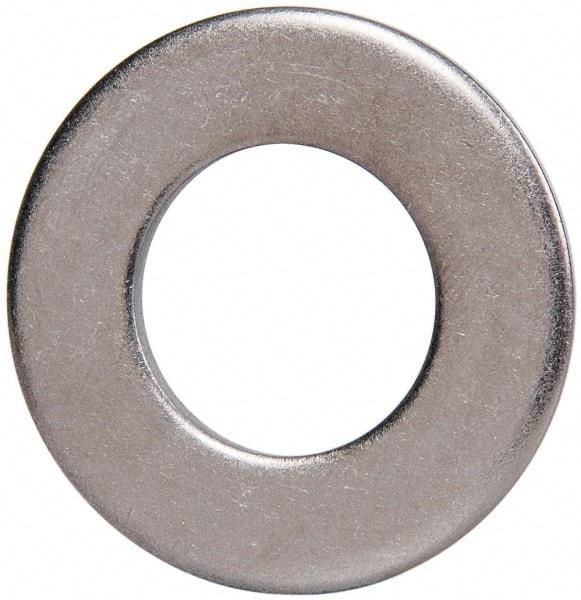

Made in USA - 7/8" Screw, Grade 300 Stainless Steel Standard Flat Washer - 0.938" ID x 1-3/4" OD, 0.108" Thick, Plain Finish, Meets Military Specifications
Item #: 82294737
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 7/8 |
| Inside Diameter (Decimal Inch) | 0.9380 |
| Outside Diameter (Decimal Inch) | 1.7500 |
| Thickness (Decimal Inch) | 0.1080 |
| Material Grade | 300 |
| Material | Stainless Steel |
| Finish/Coating | Plain |
| Fastener Standard | MS15795 |
| Maximum Inside Diameter (Decimal Inch) | 0.9600 |
| Minimum Outside Diameter (Decimal Inch) | 1.7430 |
| Minimum Thickness (Decimal Inch) | 0.1080 |
| Maximum Thickness (Decimal Inch) | 0.1600 |
| Inside Diameter Tolerance (Decimal Inch) | -0.007 to 0.030 |
| Outside Diameter Tolerance (Decimal Inch) | -0.007 to 0.030 |
