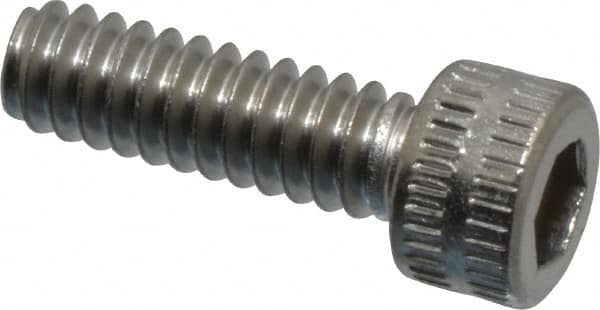

Made in USA - #4-40 UNC Hex Socket Drive, Socket Cap Screw - Grade 18-8 Stainless Steel, Uncoated, 3/8" Length Under Head
Item #: 82272071
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Socket cap head types have large cylindrical heads with recessed hex-shaped drives. They are ideal for applications where limited clearance would not allow the use of wrenches and sockets.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Socket Cap |
| Drive Type | Hex Socket |
| Thread Size (Inch) | #4-40 |
| Length Measurement Type | Length Under Head |
| Length (Inch) | 3/8 |
| Material | Stainless Steel |
| Finish/Coating | Uncoated |
| Thread Standard | UNC |
| Fastener Standard | 16995-1d |
| Hex Key Size (Inch) | 3/32 |
| Material Grade | 18-8 |
