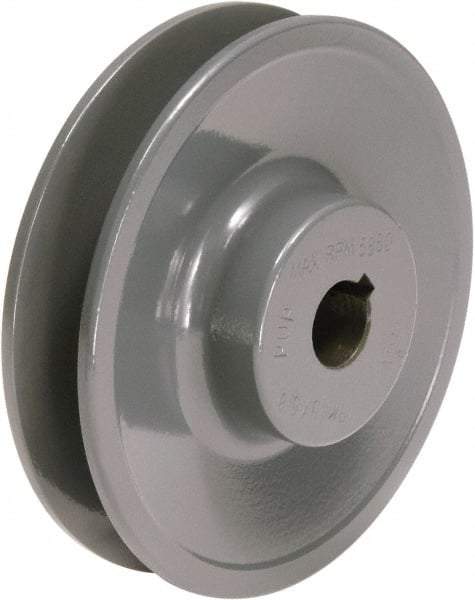

TB Wood's - 5/8" Bore, 1-3/32 Long, 3.15" Outside Diam, Finished Bore Single Groove V Belt Sheave - 7/8" Wide, 2.8 Belt Pitch B, 2.4" Pitch Diam of 4L Belt
Item #: 82224361
Brand: TB Wood's
Model #: BK3058
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (Inch) | 5/8 |
| Type | Single Groove Sheave |
| Width (Inch) | 7/8 |
| Width (Decimal Inch) | 0.8750 |
| Outside Diameter (Decimal Inch) | 3.1500 |
| Pitch Diameter of Belt Type 3L (Decimal Inch) | 0.00 |
| Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 2.40 |
| Belt Pitch B Diameter (Decimal Inch) | 2.80 |
| Counter Bore to the end of Sheave (Inch) | 0 |
| Overall Length through Bore (Inch) | 1-3/32 |
| PSC Code | 3020 |
