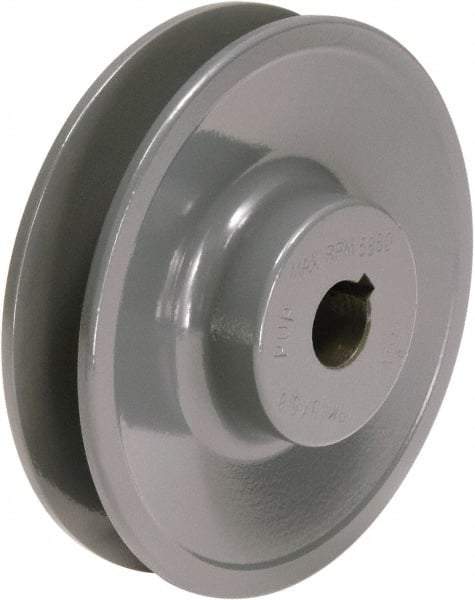

TB Wood's - 3/4" Bore, 15/16 Long, 2.55" Outside Diam, Finished Bore Single Groove V Belt Sheave - 3/4" Wide, 1.96" Pitch Diam of 3L Belt, 2.3" Pitch Diam of 4L Belt
Item #: 82223181
Brand: TB Wood's
Model #: AK2534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (Inch) | 3/4 |
| Type | Single Groove Sheave |
| Width (Inch) | 3/4 |
| Width (Decimal Inch) | 0.7500 |
| Outside Diameter (Decimal Inch) | 2.5500 |
| Pitch Diameter of Belt Type 3L (Decimal Inch) | 1.96 |
| Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 2.30 |
| Belt Pitch B Diameter (Decimal Inch) | 0.00 |
| Counter Bore to the end of Sheave (Inch) | 0 |
| Overall Length through Bore (Inch) | 15/16 |
| PSC Code | 3020 |
