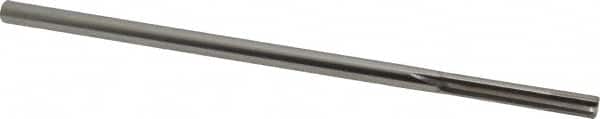

Made in USA - 0.245" Carbide-Tipped 8 Flute Chucking Reamer - Straight Flute, 15/64" Straight Shank, 1-1/2" Flute Length, 6" OAL
Item #: 82024506
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloy.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.2450 |
| Reamer Material | Carbide-Tipped |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 6 |
| Flute Length (Inch) | 1-1/2 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 8 |
| Maximum Shank Diameter (Inch) | 15/64 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | 0.0003 to -0.0000 |
