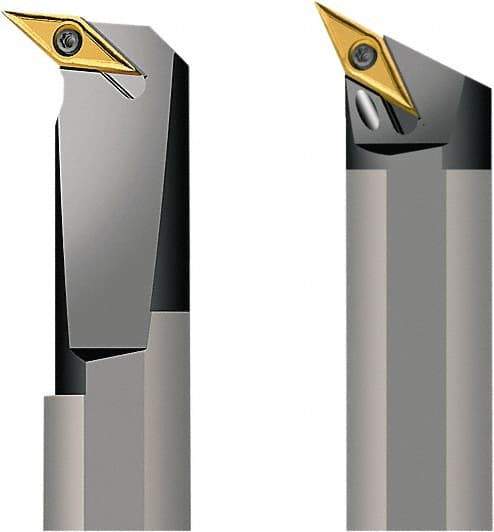

Seco - 1.3" Min Bore Diam, 12" OAL, 1" Shank Diam, A-PVPN Indexable Boring Bar - VNMU 2.531 Insert, Pin Holding Method
Item #: 82000530
Brand: Seco
Model #: 15234
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PVPN |
| Series | Pin Lock |
| Minimum Bore Diameter (Decimal Inch) | 1.3000 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | VNMU 2.531 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin |
| Rake | Negative |
| Lead Angle | 117.5 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3125 |
| Rake Angle | -3 |
| Complete Insert Compatibility | VNMU 2.531-M3 |
| Toolholder Material | Steel |
