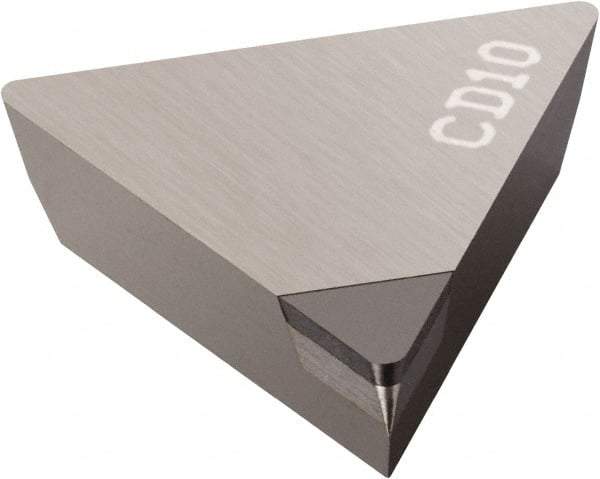

Sandvik Coromant - TPUN321 FP Grade CD10 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 81967317
Brand: Sandvik Coromant
Model #: 5755310
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPUN |
| Insert Size | 321 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Chip Breaker | FP |
| ISO Number | TPUN160304FPCD10 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | 5755310 |
| Primary Workpiece Material | N |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 2.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1063 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
