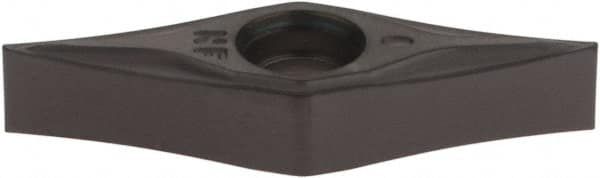

Iscar - VNMG2.5-0 NF Grade IC907 Carbide Turning Insert - 35° Diamond, 9/32" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 81924847
Brand: Iscar
Model #: 5505157
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 2.5-0 |
| Material | Carbide |
| Length (mm) | 12.40 |
| Length (Decimal Inch) | 0.4882 |
| Inscribed Circle (mm) | 7.15 |
| Inscribed Circle (Decimal Inch) | 0.2815 |
| Inscribed Circle (Inch) | 9/32 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC907 |
| Material Grade | C7/C8 |
| Chip Breaker | NF |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M; H |
| Included Angle | 35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
