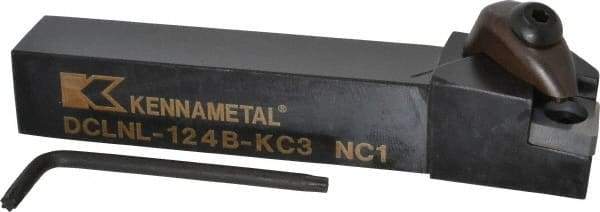

Kennametal - DCLN, Left Hand Cut, 5° Lead Angle, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 4-1/2" OAL, CN..43. Insert Compatibility, Series Kenclamp
Item #: 81859514
Brand: Kennametal
Model #: 1875142
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Series | Kenclamp |
| Lead Angle | 5 |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | CN..43. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
