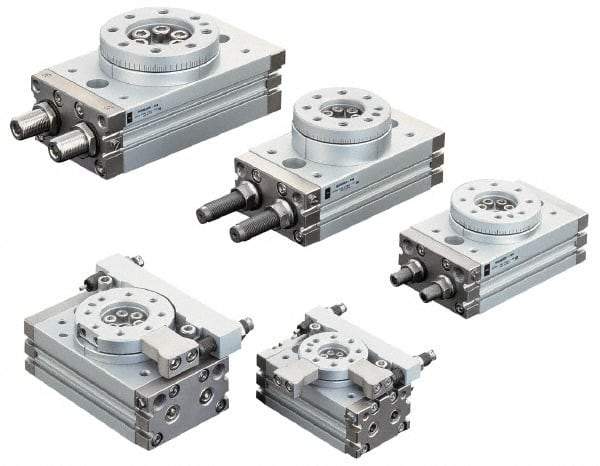

SMC PNEUMATICS - 60mm Table Diam x 18mm Piston Diam Rotary Actuator Table - 14 to 145 psi, 33.05 LBF Radial Load, 30.8 LBS Thrust Load Up, 30.8 LBS Thrust Load Down, M5x0.8 Port, 117mm Long x 65mm Wide x 37mm High
Item #: 81782229
Brand: SMC PNEUMATICS
Model #: MSQB20A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pneumatic Rotary Table Type | Rack & Pinion Type |
| Switch Type | Auto |
| Allowable Movement | 2.9500 |
| Diameter (mm) | 60.0000 |
| Height (mm) | 37.0000 |
| Length (mm) | 117.00 |
| Width (mm) | 65.00 |
| Minimum Working Pressure (psi) | 14.0 |
| Maximum Working Pressure (psi) | 145 |
| Piston Diameter (mm) | 18.000 |
| Port Size | M5x0.8 |
| Radial Load | 33.05 |
| Thrust Load Up Lbs (Pounds) | 30.80 |
| Thrust Load Down Lbs (Pounds) | 30.80 |
| Angle of Rotation | 0-190 |
