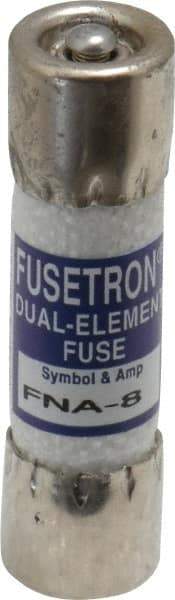

Cooper Bussmann - 125 VAC, 8 Amp, Time Delay Pin Indicator Fuse - Fuse Holder Mount, 1-1/2" OAL, 10 at AC kA Rating, 13/32" Diam
Item #: 81739815
Brand: Cooper Bussmann
Model #: FNA-8
Exact Tooling IR#: 04
Features and Benefits
Pin indicator fuses are designed with a pin that extends out of the fuse cap when an overload are short circuit occurs.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Pin Indicator |
| Amperage | 8 |
| Voltage | 125 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4063 |
| Number of Elements | 2 |
| Mounting Type | Fuse Holder |
| Color | Blue |
| Indicating Information | Indicating |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CE Certified; CSA Class 1422-01 File 53787 Certified; UL Listed Guide JDYX File E19180 |
