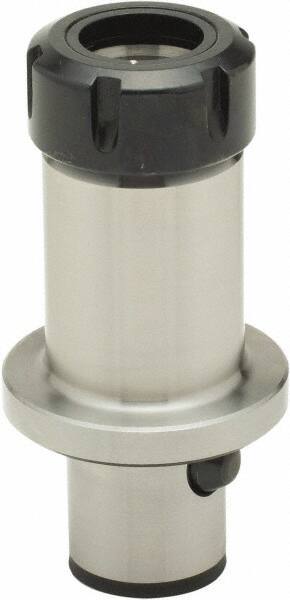

Parlec - 1mm to 13mm Capacity, 3-1/4" Projection, Modular Connection, ER20 Collet Chuck - 0.0002" TIR, Through-Spindle
Item #: 81733099
Brand: Parlec
Model #: PC4-20ER325
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Modular Connection |
| Modular Connection Size | PC4 |
| Projection (Decimal Inch) | 3.2500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 1.3400 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.3400 |
