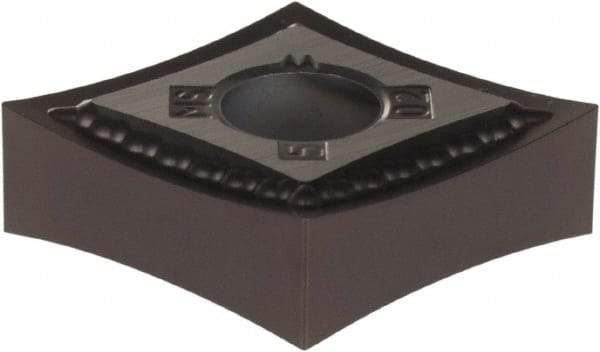

Kennametal - CNMG430.5 MS Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 81666687
Brand: Kennametal
Model #: 5090494
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 430.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | MS |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | P; M |
| Secondary Workpiece Material | S; K; N |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
