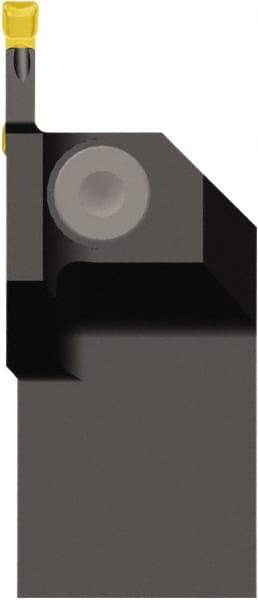

Seco - CFM, External, Left Hand, 0.98" Max Depth of Cut, 5mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1605.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 81660607
Brand: Seco
Model #: 62498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CFM |
| Insert Compatibility | LC.. 1605.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Jetstream; Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0400 |
| Head Length (Decimal Inch) | 2.1800 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160500-0476-RP; LCGF 160502-0500-GG; LCGF 160502-0500-GS; LCGF 1605M0-0500-RP; LCGN 160502-0500-FG; LCGN 160502-0520-FG; LCGN 160507-0150L-D76; LCGN 160507-0150R-D76; LCGN 160507-0355-ST; LCMF 160500-A187-MP; LCMF 160504-0500-FT; LCMF 160504-0500-MC |
