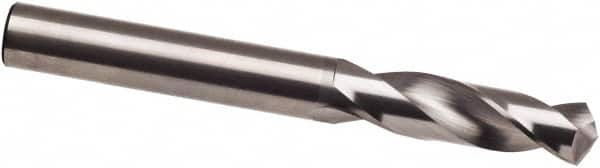

Screw Machine Length Drill Bit: 0.2571″ Dia, 118 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 730
Item #: 81634198
Brand: Guhring
Model #: 9007300065300
Product Specifications
| Drill Bit Size (Letter) | F |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2571 |
| Drill Bit Size (Decimal Inch) | 0.2571 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 6.53 |
| Series | 730 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.8350 |
| Maximum Drilling Depth (mm) | 21.21 |
| Shank Length (Decimal Inch) | 1.5354 |
| Shank Length (mm) | 39.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | h8 |
| Standards | DIN 6539 |
| Flute Length (mm) | 31.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Designation | DIN |
| Material Grade | Micrograin |
