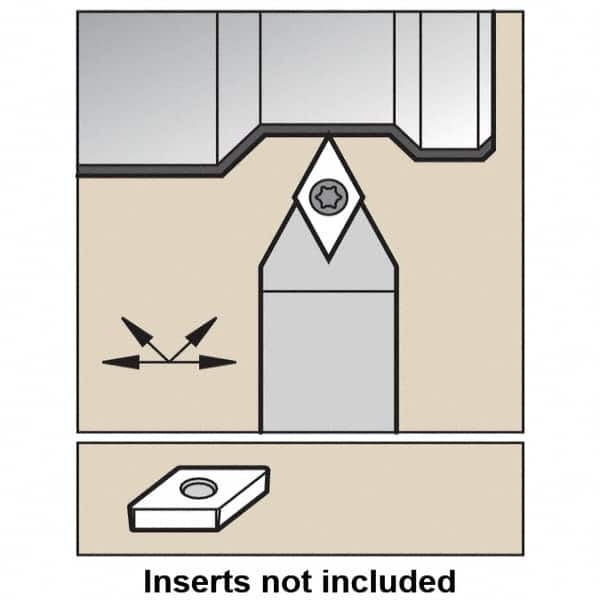

Kennametal - SDPC, Neutral Cut, 27.5° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DC.. 11T3.. Insert Compatibility, Series Screw-On
Item #: 81634040
Brand: Kennametal
Model #: 1772173
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SDPC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-On |
| Lead Angle | 27.5 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DC.. 11T3.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 6.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2362 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
| Insert Inscribed Circle (Inch) | 3/8 |
