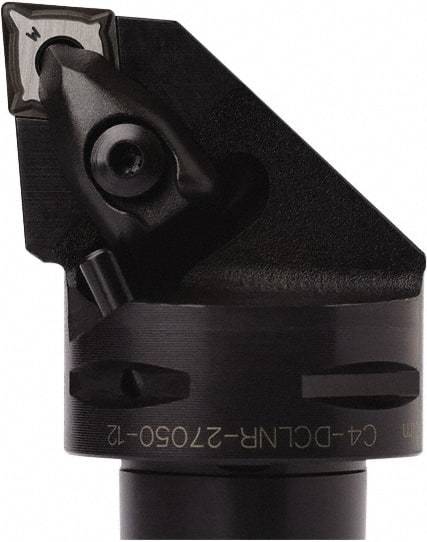

Seco - Right Hand Cut, Size C4, CN.. 1606.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 55mm Head Length, Series Seco-Capto
Item #: 81605040
Brand: Seco
Model #: 33747
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 55.00 |
| Head Length/Projection (Decimal Inch) | 2.1654 |
| Insert Style | CN.. 1606.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 55.00 |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMA 160608; CNMA 160612; CNMA 160616; CNMG 160608-M1; CNMG 160608-M3; CNMG 160608-M5; CNMG 160608-MF4; CNMG 160608-MR4; CNMG 160608-MR7; CNMG 160612-M1; CNMG 160612-M3; CNMG 160612-M5; CNMG 160612-M6; CNMG 160612-MF4; CNMG 160612-MR4; CNMG 160612-MR6; CN |
