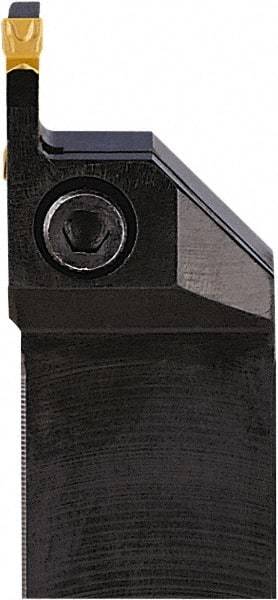

Seco - CFI, Right Hand Cut, 16mm Shank Height x 16mm Shank Width, Indexable Turning Toolholder - 100mm OAL, LC..1604.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 81600538
Brand: Seco
Model #: 91801
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CFI |
| Series | Multi-Directional Turning (MDT) |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | LC..1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Insert Width (mm) | 4.00 |
| Insert Width (Decimal Inch) | 0.1575 |
| Toolholder Material | Steel |
