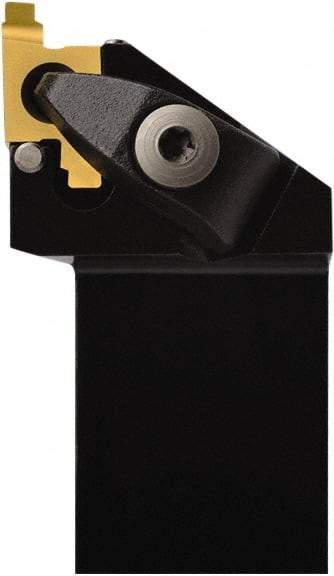

Seco - CE, External, Left Hand, 1/4" Max Depth of Cut, 0.174 to 1/4" Groove Width, Indexable Grooving Tool Holder - 20EAL, 20NR Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 6" OAL
Item #: 81503021
Brand: Seco
Model #: 13473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Minimum Groove Width (Decimal Inch) | 0.1740 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | CE |
| Insert Compatibility | 20EAL; 20NR |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.3000 |
| Complete Insert Compatibility | 20EAL 6.0FA; 20NR .174FG; 20NR .209FG; 20NR .25FG; 20NR 2.0D76; 20NR 3.0R; 20NR 3.0ST |
