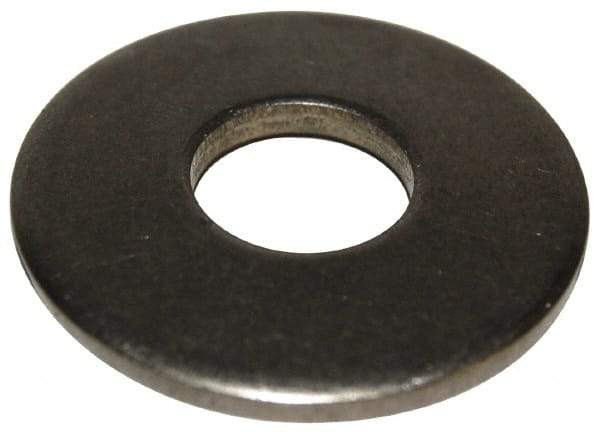

Gardner Spring - 1/2" Bolt, 17/32" ID, Grade 302 Stainless Steel, Belleville Disc Spring - 1" OD, 0.085" High, 1/16" Thick
Item #: 81434003
Brand: Gardner Spring
Model #: MG1000-063-S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/2 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.5310 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Outside Diameter (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.0620 |
| Overall Height (Decimal Inch) | 0.0850 |
| Deflection (Decimal Inch) | 0.0184 |
| Deflection to Flat (Decimal Inch) | 0.0180 |
| Minimum Inside Diameter (Decimal Inch) | 0.5310 |
| Load at Flat (Lb.) | 1016.60 |
| Load at Flat (N) | 4849.00 |
| Load at Deflection (Lb.) | 810.10 |
| Minimum Load at Deflection (Lb.) | 761.00 |
| Minimum Load at Deflection (N) | 3385.00 |
| Maximum Load at Deflection (Lb.) | 1030.00 |
| Maximum Load at Deflection (N) | 4582.00 |
