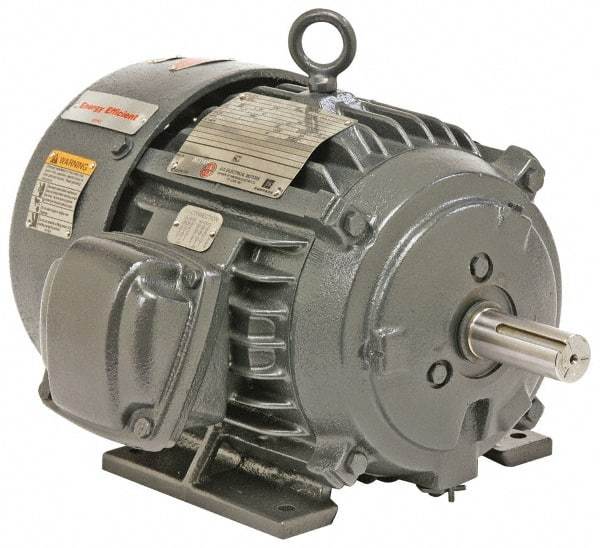

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 182 Frame, Rigid Mount, 1 Speed, Ball Bearings, 4.9-4.9/2.4 Full Load Amps, F Class Insulation, Reversible
Item #: 81425290
Brand: US Motors
Model #: HC32E3B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1175 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 4.9-4.9/2.4 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 14.5300 |
| Full Load Efficiency Rating | 85.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
