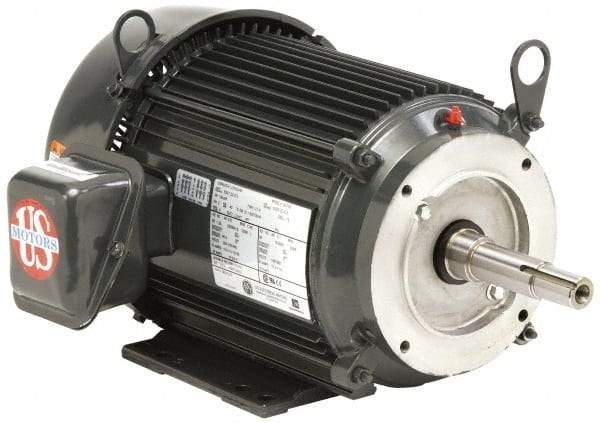

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 3,450/2,380 RPM, 208-230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 56J Frame, Rigid Mount, 1 Speed, Ball Bearings, 6.2-5.6/2.8 Full Load Amps, F Class Insulation, Reversible
Item #: 81423220
Brand: US Motors
Model #: EE706
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Standard Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56J |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 6.2-5.6/2.8 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 12.3500 |
| Full Load Efficiency Rating | 84 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
