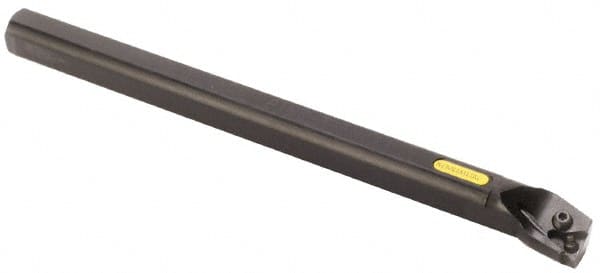

Kennametal - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, A-PTFN Indexable Boring Bar - 40mm Max Bore Depth, TN.. Insert, Screw Holding Method
Item #: 81363806
Brand: Kennametal
Model #: 2447537
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PTFN |
| Series | Kenlever |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Compatibility | TN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TN.. 160408 |
| Toolholder Material | Steel |
