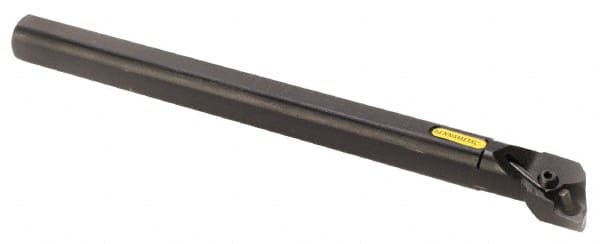

Kennametal - 27mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, A-PWLN Indexable Boring Bar - 32mm Max Bore Depth, WN.. Insert, Screw Holding Method
Item #: 81363434
Brand: Kennametal
Model #: 1244113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PWLN |
| Series | Kenlever |
| Minimum Bore Diameter (mm) | 27.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0630 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | WN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 11.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | WN.. 060404 |
| Toolholder Material | Steel |
