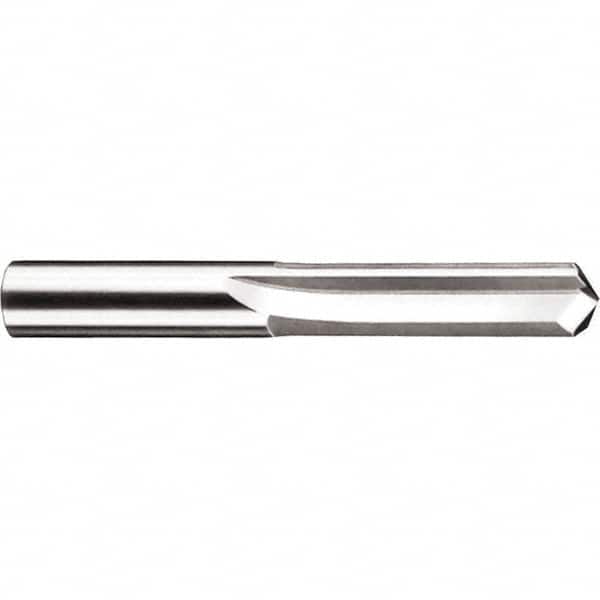

Die Drill Bit: 17/64″ Dia, 140 °, Solid Carbide AlTiN Finish, 1-7/16″ Flute Length, 2-5/8″ OAL
Item #: 81287302
Brand: SGS
Model #: 56149
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 17/64 |
| Tool Material | Carbide |
| Coating/Finish | Coated |
| Flute Length (Decimal Inch) | 1.4380 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 2-5/8 |
| Shank Diameter (Decimal Inch) | 0.2660 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Material Grade | Micrograin |
| Overall Length (Decimal Inch) | 2.6250 |
| Series | 106 |
| Number Of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.0000 to -0.0127 mm |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Steel |
| Standards | DIN 6539 |
| Maximum Drilling Depth (Inch) | 1-7/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.1100 |
| Shank Length (Inch) | 1-3/16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Flute By Diameter Ratio | 3xD |
