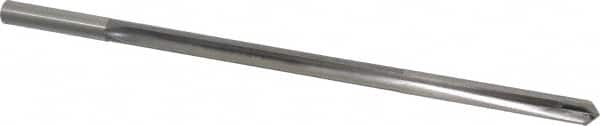

Die Drill Bit: 1/2″ Dia, 125 °, Solid Carbide Uncoated, 9-3/4″ Flute, 12″ OAL, Series 172
Item #: 81223323
Brand: CJT
Model #: 17205000
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (mm) | 12.70 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 9-3/4 |
| Flute Length (Decimal Inch) | 9.7500 |
| Drill Point Angle | 125 |
| Overall Length (Inch) | 12 |
| Shank Diameter (mm) | 12.70 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Series | 172 |
| Number Of Flutes | 2 |
| Point Type | Faceted |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Drill Bit Diameter Tolerance | +0.000 to -0.025 mm; +0.0000 to -0.0010 in |
| Primary Workpiece Material | Bronze; Cast Aluminum; Ductile Iron; Cast Iron; Tool Steel; Abrasive Materials |
| Secondary Workpiece Material | Bronze; Cast Aluminum; Ductile Iron; Cast Iron; Tool Steel; Abrasive Materials |
| Maximum Drilling Depth (Decimal Inch) | 8.6000 |
