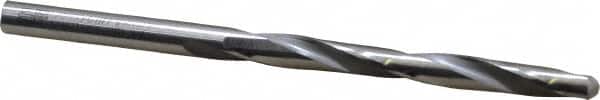

CJT - Letter A 118° Carbide-Tipped Jobber Drill - Bright Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4" OAL, Standard Point
Item #: 81205015
Brand: CJT
Model #: 12002340
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | A |
| Drill Bit Size (Decimal Inch) | 0.2340 |
| Drill Point Angle | 118 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-3/4 |
| Flute Length (mm) | 69.85 |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Point Type | Standard |
| Shank Diameter (Decimal Inch) | 0.2340 |
| Maximum Drilling Depth (Decimal Inch) | 1.6000 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.018 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Series/List | 120 |
