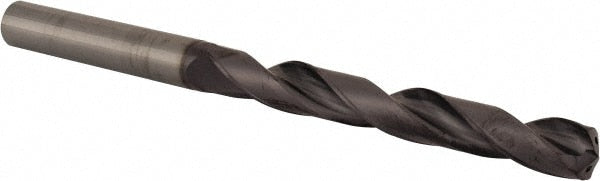

Jobber Drill: 1/2" Dia, 140 deg Point, Solid Carbide
Item #: 51028983
Brand: YG-1
Model #: 0321CTF
Product Specifications
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Self Centering |
| Primary Workpiece Material | Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Flute Length (Inch) | 4-3/32 |
| Primary Workpiece Material Code | P |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 167.08 |
| Overall Length (Inch) | 6-37/64 |
| Overall Length (Decimal Inch) | 6.5781 |
| Spiral Type | Regular |
| Flute Length (mm) | 103.98 |
| Flute Length (Decimal Inch) | 4.0938 |
| Series | DH418 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 1/2 |
| Maximum Drilling Depth (Decimal Inch) | 4.0938 |
| Maximum Drilling Depth (Inch) | 4-3/32 |
| Shank Length (Decimal Inch) | 2.4844 |
| Shank Length (Inch) | 2-31/64 |
| Number of Flats | 0 |
| Drill Bit Diameter Tolerance | h6 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| UNSPSC Code | 23241634 |
