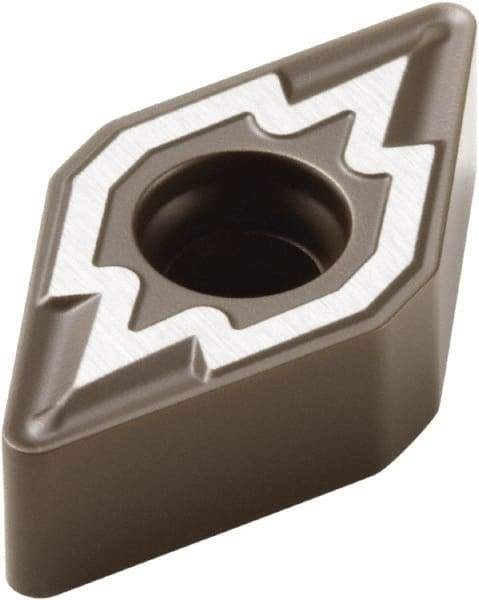

Seco - DNMU332 M3 Grade TH1000 Carbide Turning Insert - TiAlSiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 81032815
Brand: Seco
Model #: 18900
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMU |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | TH1000 |
| Coating | TiAlSiN |
| Material Grade | Super-Fine Grain |
| Chip Breaker | M3 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DNMU 332-M3 |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| MultiUseTool | No |
| Shape | Diamond |
