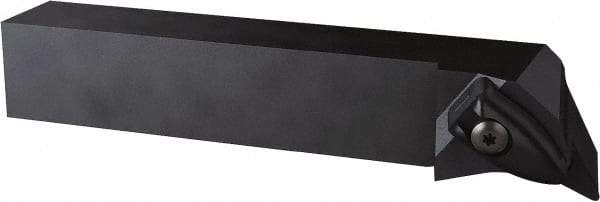

Seco - DVPN, Left Hand Cut, 25.3mm Shank Height x 25.3mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL
Item #: 81025397
Brand: Seco
Model #: 83459
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DVPN |
| Rake | Negative |
| Shank Width (mm) | 25.30 |
| Shank Width (Decimal Inch) | 0.9961 |
| Shank Height (mm) | 25.30 |
| Shank Height (Decimal Inch) | 0.9961 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 31.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2480 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
