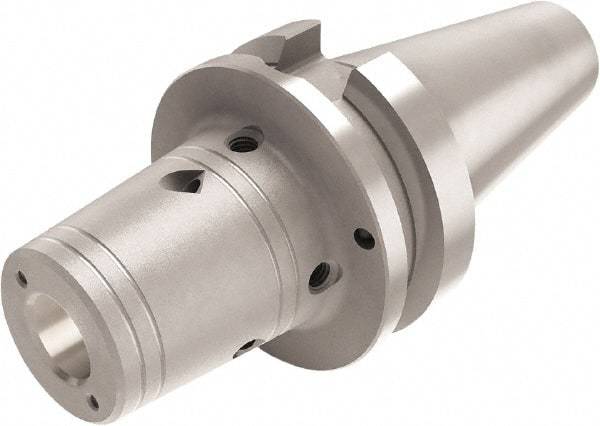

Seco - 12mm Hole Diam, BT50 Taper Shank Shrink Fit Tool Holder & Adapter - 100mm Projection, 27mm Nose Diam, 47.5mm Clamping Depth, 40,000 RPM, Through Coolant
Item #: 81024507
Brand: Seco
Model #: 84229
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 47.50 |
| Clamping Depth (Decimal Inch) | 1.8701 |
| Overall Length (mm) | 201.80 |
| Overall Length (Decimal Inch) | 7.9449 |
| Balanced to (RPM) | 40000 |
