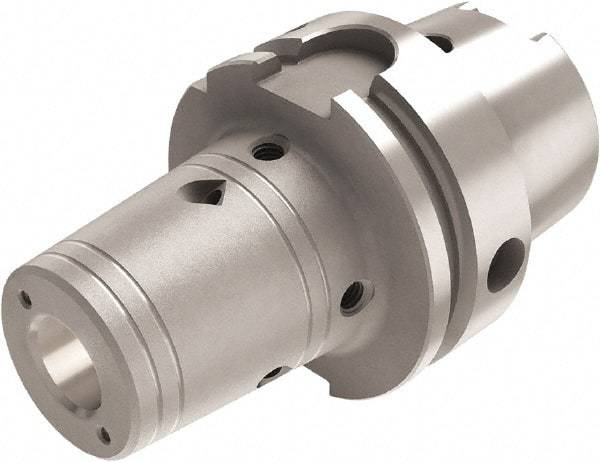

Seco - 12.7mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 69.85mm Projection, 27mm Nose Diam, 46mm Clamping Depth
Item #: 81024390
Brand: Seco
Model #: 84438
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Projection (mm) | 69.85 |
| Projection (Decimal Inch) | 2.7500 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | NonThrough Coolant |
| Clamping Depth (mm) | 46.00 |
| Clamping Depth (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 101.15 |
| Overall Length (Decimal Inch) | 3.9823 |
