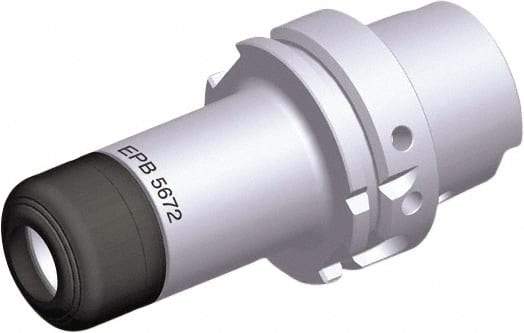

Seco - 1mm to 7mm Capacity, 100mm Projection, HSK63A Hollow Taper, ER11 Collet Chuck - 132mm OAL
Item #: 81024374
Brand: Seco
Model #: 84770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Hollow Taper |
| Taper Size | HSK63A |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 7.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.2756 |
| Overall Length (mm) | 132.00 |
| Overall Length (Decimal Inch) | 5.1968 |
| Nose Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 0.6299 |
| PSC Code | 5136 |
