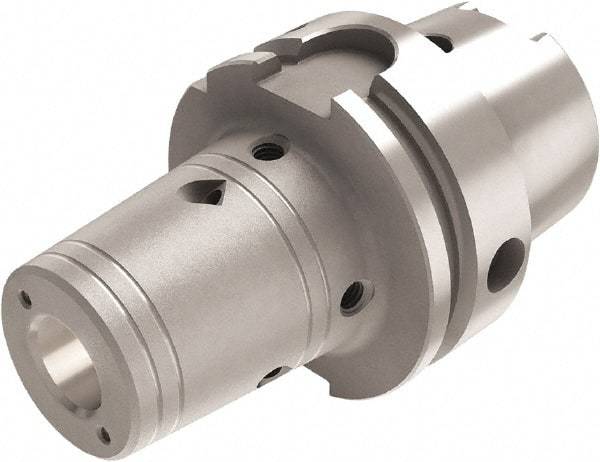

Seco - 20mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 75mm Projection, 44mm Nose Diam, 50.5mm Clamping Depth, 35,000 RPM, Through Coolant
Item #: 81024333
Brand: Seco
Model #: 84218
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Projection (mm) | 75.00 |
| Projection (Decimal Inch) | 2.9528 |
| Nose Diameter (mm) | 44.00 |
| Nose Diameter (Decimal Inch) | 1.7323 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 50.50 |
| Clamping Depth (Decimal Inch) | 1.9882 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Balanced to (RPM) | 35000 |
