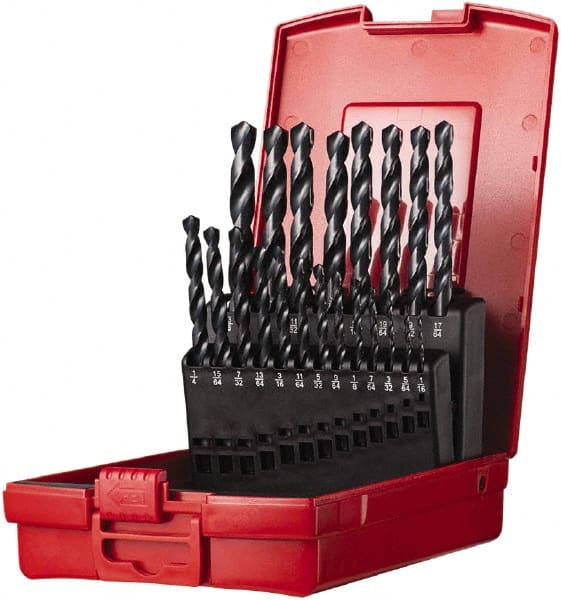

Drill Bit Set: Jobber Length Drill Bits, 21 Pc, 0.0625″ to 0.375″ Drill Bit Size, 118 °, High Speed Steel Oxide, Straight Shank, Series A100
Item #: 80998487
Brand: DORMER
Model #: 5969754
Product Specifications
| Drill Bit Set Type | Jobber Length Drill Bits |
| Number of Pieces | 21 |
| Tool Material | High Speed Steel |
| Minimum Drill Bit Size (Inch) | 1/16 |
| Maximum Drill Bit Size (Inch) | 3/8 |
| Shank Type | Straight Shank |
| Drill Point Angle | 118 |
| Coating/Finish | Oxide |
| Minimum Drill Bit Size (Inch) | 0.0625 |
| Maximum Drill Bit Size (Inch) | 0.3750 |
| Series | A100 |
| Drill Bit Size2 (Decimal Inch) | 0.1406; 0.2969; 0.1720; 0.1874; 0.3126; 0.2500; 0.3437; 0.0937; 0.2657; 0.2811; 0.3748; 0.0626; 0.2031; 0.3594; 0.2189; 0.2343; 0.1563; 0.0780; 0.1252; 0.3280; 0.1094 |
| Drill Bit Sizes Included (Wire) | 0.0626;0.0780;0.0937;0.1094;0.1252;0.1406;0.1563;0.1720;0.1874;0.2031;0.2189;0.2343;0.2500;0.2657;0.2811;0.2969;0.3126;0.3280;0.3437;0.3594;0.3748 |
| Drill Bit Sizes Included (Decimal Inch) | 0.0626;0.0780;0.0937;0.1094;0.1252;0.1406;0.1563;0.1720;0.1874;0.2031;0.2189;0.2343;0.2500;0.2657;0.2811;0.2969;0.3126;0.3280;0.3437;0.3594;0.3748 |
| Maximum Hole Size | 0.375; 3/8 |
| Contents | (21) Jobber Length Drills |
| Coolant Through | No |
| Specification Designation | DIN |
| Specification Number | DIN 338 |
| System Of Measurement | Inch |
| Product Service Code | 5133 |
