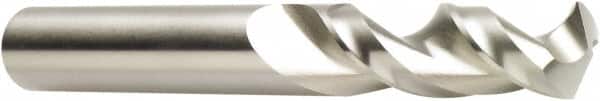

DORMER - 23/32" 130° Parabolic Flute Cobalt Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 76mm Flute Length, 121mm OAL, PFX Point, Straight Shank
Item #: 80992324
Brand: DORMER
Model #: 0212400
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.7188 |
| Drill Bit Size (Inch) | 23/32 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 76.00 |
| Flute Length (Decimal Inch) | 2.9944 |
| Overall Length (mm) | 121.00 |
| Overall Length (Decimal Inch) | 4.7674 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | PFX |
| Shank Diameter (mm) | 18.26 |
| Shank Diameter (Decimal Inch) | 0.7189 |
| Shank Diameter (Inch) | 23/32 |
| Specification Designation | ANSI; DIN |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.033 |
| Web Thinning | Web-Thinned |
| Series/List | A920 |
| Length Type | Stub |
