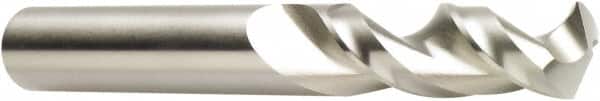

Screw Machine Length Drill Bit: 0.6094″ Dia, 130 °, Cobalt Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A920
Item #: 80992258
Brand: DORMER
Model #: 5972332
Product Specifications
| Drill Bit Size (Inch) | 39/64 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | PFX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6094 |
| Drill Bit Size (Decimal Inch) | 0.6094 |
| Overall Length (mm) | 108.00 |
| Overall Length (Decimal Inch) | 4.2552 |
| Shank Diameter (mm) | 15.48 |
| Series | A920 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
| Flute Length (Decimal Inch) | 2.7580 |
| Flute Length (mm) | 70.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | DIN; ANSI |
