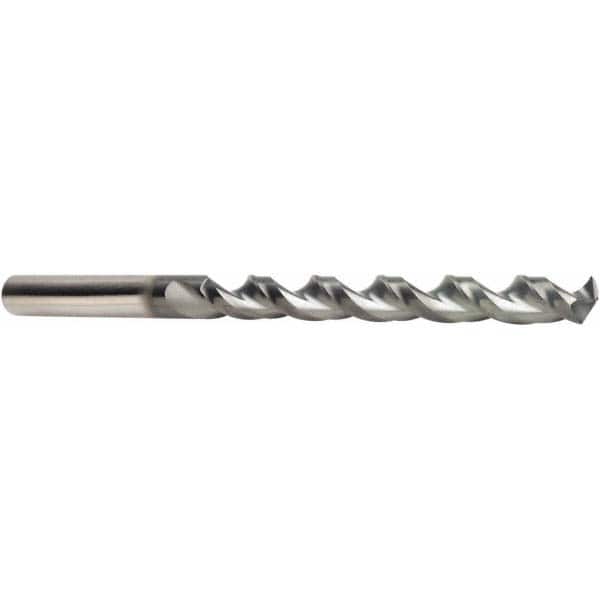

Extra Length Drill Bit: 0.4374″ Dia, 130 °, Cobalt AlCrN Finish, 4.6098″ Flute Length, Parabolic Flute, Straight-Cylindrical Shank, Series A941
Item #: 80990302
Brand: DORMER
Model #: 5972935
Product Specifications
| Overall Length (mm) | 184.00 |
| Flute Length (mm) | 117.00 |
| Tool Material | Cobalt |
| Coating/Finish | AlCrN |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | A941 |
| Point Type | Special |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | 0.000 to -0.027 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.4374 |
| Flute Length (Decimal Inch) | 4.6098 |
| Flute By Diameter Ratio | 10xD |
| Specification Designation | DIN; ANSI |
