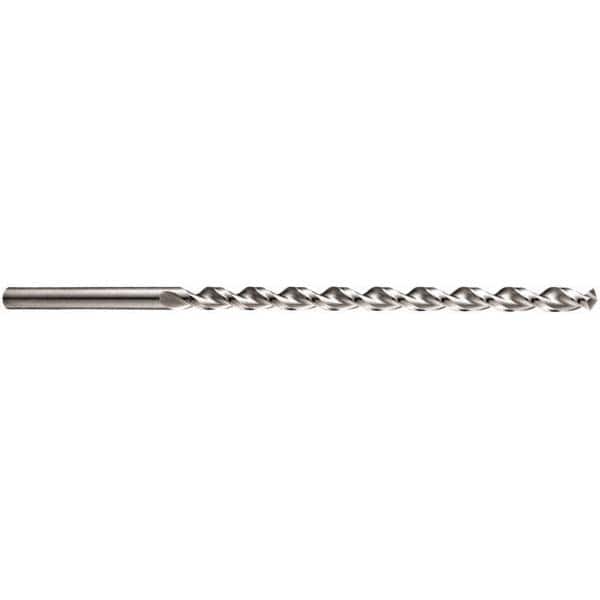

Extra Length Drill Bit: 0.2402″ Dia, 130 °, Cobalt Uncoated, 5.91″ Flute Length, Parabolic Flute, Straight-Cylindrical Shank, Series A976
Item #: 80989056
Brand: DORMER
Model #: 5973171
Product Specifications
| Drill Bit Size (mm) | 6.10 |
| Overall Length (mm) | 215.00 |
| Flute Length (mm) | 150.00 |
| Tool Material | Cobalt |
| Coating/Finish | Uncoated |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | A976 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | 0.000 to -0.022 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Titanium; Aluminum Magnesium; Copper |
| Secondary Workpiece Material Code | P; S; K; M; N |
| Standards | DIN 1869/1 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Shank Diameter (Decimal Inch) | 0.2402 |
| Shank Diameter (mm) | 6.10 |
| Shank Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 5.9100 |
| Flute By Diameter Ratio | 15xD |
| Specification Designation | DIN |
