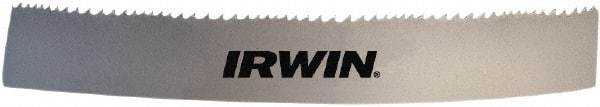

Irwin Blades - 8 to 12 TPI, 11' 5" Long x 1" Wide x 0.035" Thick, Welded Band Saw Blade - M42, Bi-Metal, Toothed Edge, Contour Cutting
Item #: 80972458
Brand: Irwin Blades
Model #: 1895972
Exact Tooling IR#: 04
Features and Benefits
Bi-metal blades feature a toothed edge made from high speed steel (HSS) attached to a flexible steel backing through an electron-beam welding process. This configuration results in a blade that makes precise cuts while resisting breakage.
M42, also known as high speed steel (HSS), provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
The cutting surface of a toothed edge is composed of a row of pointed teeth. Common tooth variations include the number of teeth per inch and pitch pattern. They are used on ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Blade Material | Bi-Metal |
| Tip/Edge Material | M42 |
| Tooth Material | M 42 HSS |
| Blade Length (Feet) | 11' 5" |
| Teeth Per Inch | 8-12 |
| Blade Width (Inch) | 1 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Cutting Edge Style | Toothed Edge |
| Tooth Rake Angle | Positive |
| Pitch Pattern | Variable |
| Kerf Width (Decimal Inch) | 1.0000 |
| Material Grade | M42 |
| Contour Cutting | Yes |
