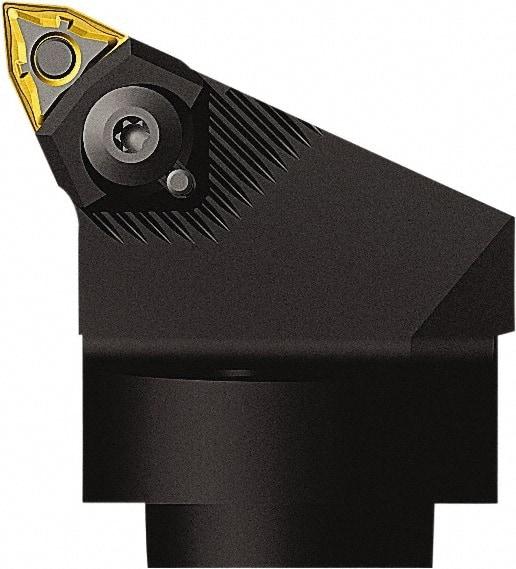

Seco - Right Hand Cut, Size C6, WNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 44.96mm Ctr to Cutting Edge, 65.02mm Head Length, Series Seco-Capto
Item #: 80904535
Brand: Seco
Model #: 12511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.02 |
| Head Length/Projection (Decimal Inch) | 2.5600 |
| Insert Style | WNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 44.96 |
| Center to Cutting Edge (Decimal Inch) | 1.7700 |
| Insert Holding Method | Pin & Wedge |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 62.99 |
| Neck Diameter (Decimal Inch) | 2.4800 |
| Complete Insert Compatibility | WNMG 432-FF2; WNMG 432-M3; WNMG 432-M3(O); WNMG 432-M4; WNMG 432-M5; WNMG 432-MF2; WNMG 432-MF3; WNMG 432-MF4; WNMG 432-MF5; WNMG 432-MR6; WNMG 432-MR7; WNMG 432W-M3; WNMG 432W-MF2 |
