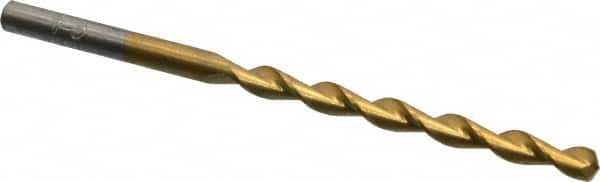

Chicago-Latrobe - 11/64" 135° High Speed Steel Jobber Drill - TiN Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-1/4" OAL, Split Point
Item #: 80902117
Brand: Chicago-Latrobe
Model #: 53904
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-1/8 |
| Overall Length (Inch) | 3-1/4 |
| Point Type | Split Point |
| Shank Diameter (Inch) | 11/64 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0007 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy-Duty |
| Series/List | 150DHT |
