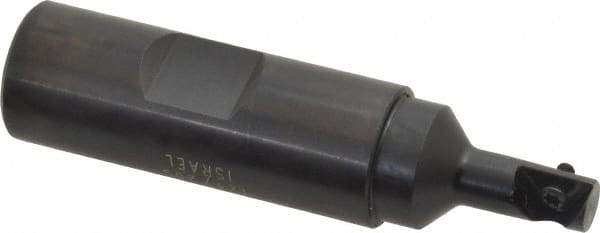

Kennametal - 0.39" Cut Diam, 0.61" Max Depth of Cut, 3/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 11, 0.43" Insert Size, 1 Insert, Toolholder Style K039, 3.12" OAL
Item #: 80748494
Brand: Kennametal
Model #: 1280478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3900 |
| Maximum Hole Depth (Decimal Inch) | 0.6100 |
| Insert Style | STN 11 |
| Insert Size (Decimal Inch) | 0.4300 |
| Toolholder Style | K039 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.1200 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.2900 |
| Insert Inscribed Circle (Inch) | 1/4 |
