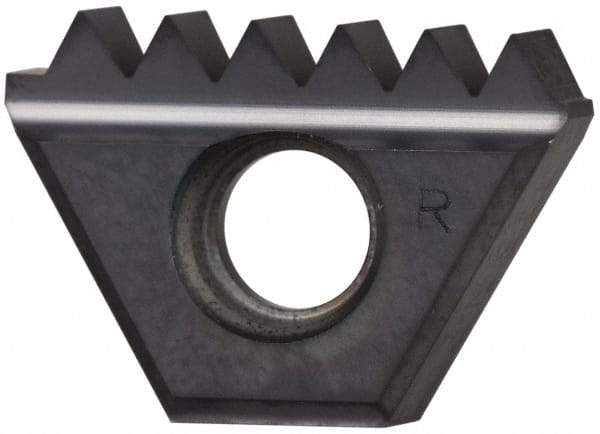

Kennametal - 11.5 TPI, Internal/External Thread, NPT Standard, STN KC635M Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 80747363
Brand: Kennametal
Model #: 2429565
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | STN |
| Thread Type | Internal/External |
| Thread Standard | NPT |
| Threads Per Inch | 11.5 |
| Length (mm) | 16.00 |
| Manufacturer's Grade | KC635M |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Inch) | 3/8 |
| Conical | No |
