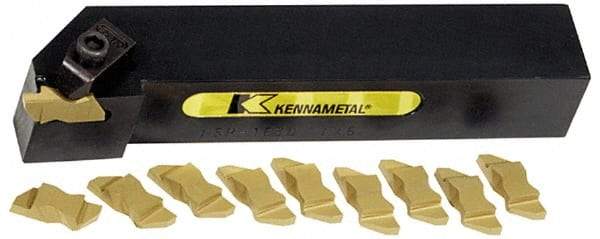

Kennametal - NS, Right Hand, 0.21" Max Depth of Cut, 4.95mm Max Groove Width, Indexable Grooving Tool Holder - N.3R Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 80747348
Brand: Kennametal
Model #: KTH98020L
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2100 |
| Maximum Groove Width (mm) | 4.95 |
| Maximum Groove Width (Decimal Inch) | 0.1949 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | NS |
| Insert Compatibility | N.3R |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Top Notch |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.2500 |
