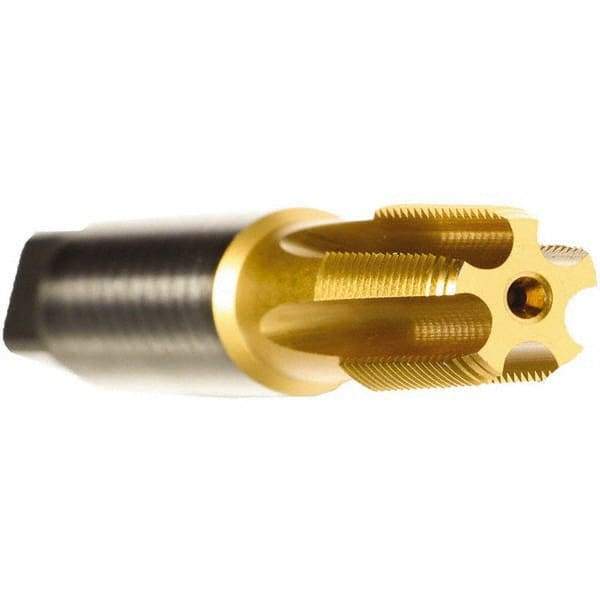

Emuge - 1/8-27 NPT Thread, 5 Flute Standard Pipe Tap - 2-1/8" OAL, 3/4" Thread Length, 7/16" Shank Diam, TiN Finish, Cobalt
Item #: 80696073
Brand: Emuge
Model #: AW181400.5764
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 1/8-27 |
| Thread Standard | NPT |
| Material | Cobalt |
| Finish/Coating | TiN |
| Number of Flutes | 5 |
| Overall Length (Decimal Inch) | 2.1250 |
| Overall Length (Inch) | 2-1/8 |
| Thread Length (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.3280 |
| Series/List | KEG |
| Chamfer | Modified Bottoming |
