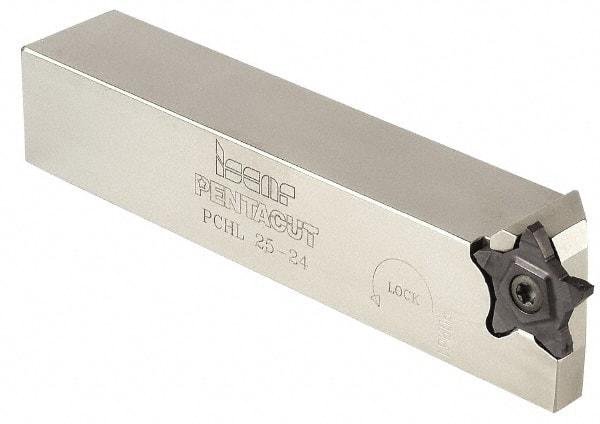

Iscar - 0.256" Max Depth of Cut, 0.0197" Min Groove Width, 5" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, PENTA 24... Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 80691652
Brand: Iscar
Model #: 2301617
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 24... |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Head Length (Decimal Inch) | 0.8000 |
| Shank Length (Decimal Inch) | 5.0000 |
