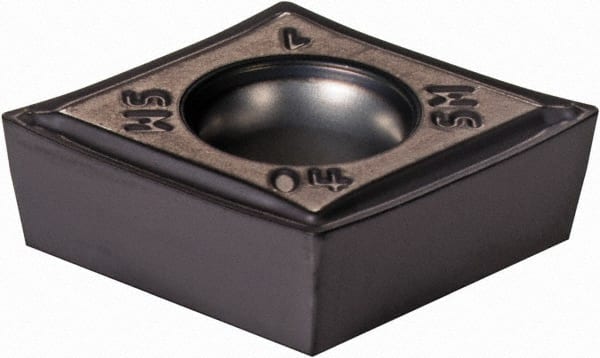

CCMT431SM IC907 Carbide Turning Insert TiN/TiAlN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 1/64″ Corner Radius, 80° Diamond, Series Isoturn
Item #: 80591357
Brand: Iscar
Model #: 5506275
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC907 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.51 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Maximum Depth of Cut (mm) | 3.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5080 |
| Insert Length (mm) | 12.90 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | CCMT 431-SM |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | CCMT 431-SM |
| Material Grade | Submicron |
| Chip Breaker | SM |
| Single Or Double End | Single |
| Multi-Use Tool | Yes |
| Coating/Finish | TiN; TiAlN |
 | |
| MSC Part # | 80591357 |
| Mfr Part # | 5506275 |
