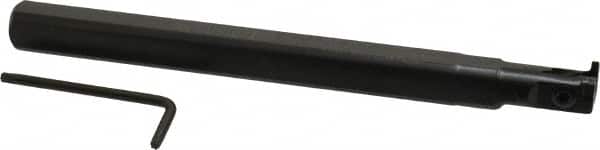

Seco - A..-CGHR, Right Hand, 0.118" Max Depth of Cut, Indexable Grooving Tool Holder - LC..1303.. Insert Compatibility, 7" OAL, Through Coolant
Item #: 80584956
Brand: Seco
Model #: 61858
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | A..-CGHR |
| Insert Compatibility | LC..1303.. |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4000 |
| Center to Cutting Edge (Decimal Inch) | 0.4000 |
| Head Height (Decimal Inch) | 1.6200 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LC.. 1303..; LCMF; LCMR |
| Minimum Bore Diameter (Decimal Inch) | 0.6300 |
| Shank Diameter (Decimal Inch) | 0.6250 |
