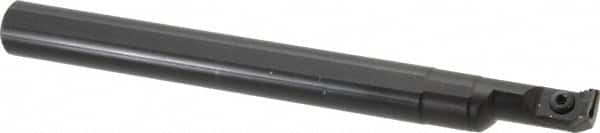

Seco - A..-CGHR, Right Hand, 0.79" Max Depth of Cut, Indexable Grooving Tool Holder - LC..1304.. Insert Compatibility, 8" OAL, Through Coolant
Item #: 80584931
Brand: Seco
Model #: 61866
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | A..-CGHR |
| Insert Compatibility | LC..1304.. |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Insert Holding Method | Clamp |
| Maximum Bore Depth (Decimal Inch) | 0.2160 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5700 |
| Center to Cutting Edge (Decimal Inch) | 0.5700 |
| Head Height (Decimal Inch) | 2.0100 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LC.. 1304..; LCMF; LCMR |
| Minimum Bore Diameter (Decimal Inch) | 0.7900 |
| Shank Diameter (Decimal Inch) | 0.7500 |
